| Focus Mode |
Y
|
| Max. Frame Rate |
3840×2160
|
| Day/Night |
True
|
| Main Stream |
Y
|
| Iris Type |
Auto
|
| IR Illuminators |
Color: [email protected]/W: 0Lux with IR on
|
| IR Distance |
Up to 30m
|
| Image Settings |
Y
|
| image enhancement |
Y
|
| Network Access Control |
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.20x, QoS, IGMP, ICMP, SSL
|
| Management Software |
SmartTools；CMS;M-sight pro APP
|
| Event Detection |
Y
|
| Event Action |
Y
|
| Digital Zoom |
Y
|
| Basic Event Detection |
Y
|
| Audio Interface |
Y
|
| Audio Input |
Y
|
| Alarm Input |
Y
|
| Audio Output |
Y
|
| Network Storage |
Y
|
| Sub Stream |
Y
|
| Video Compression |
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
|
| Minimum Illumination |
Color: [email protected]/W: 0Lux with IR on
|
| Working Humidity |
0~90%(Non-condensing)
|
| Video Motion Detection |
Y
|
| Field of View |
H110°/D126°/V60°(2.8mm)H91°/D106°/V50°(4mm)H55°/D63°/V32°(6mm)
|
| Shutter Time |
1/100000s~1s
|
| Max. Resolution |
3840×2160
|
| Working Temprature |
-40℃~60℃
|
| White Balance |
Y
|
| User Authentication |
Y
|
| ONVIF |
Y
|
| Network Interface |
Y
|
| Third Stream |
Y
|
| Smart Record |
Y
|
| Smart IR |
Y
|
| Image Sensor |
1/2.8″ Progressive Scan CMOS
|
| Scheduled Task |
Y
|
| S/N Ratio |
>55dB
|
| ROI |
Y
|
| Protocols |
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.20x, QoS, IGMP, ICMP, SSL
|
| Audio Compression |
G.711/AAC/G.722/G.726
|
| Event Trigger |
Y
|
| Connection type |
PoE
|
| Working humidity |
0~90%(Non-condensing)
|
| Sub stream |
Y
|
| Storage |
Support microSD/SDHC/SDXC Card Local Storage, up to 275G
|
| Third stream |
Y
|
| Smart record |
Y
|
| Smart ir |
Y
|
| Shutter time |
1/100000s~1s
|
| Sn ratio |
>55dB
|
| Power input |
PoE (802.3af) / DC 12V±10%
|
| Audio output |
Y
|
| Minimum illumination |
Color: [email protected]/W: 0Lux with IR on
|
| Video motion detection |
Y
|
| Video compression |
H.265 /H.265(HEVC)/H.264 /H.264/MJPEG
|
| Vandal rating |
IK10
|
| User authentication |
Y
|
| Scheduled task |
Y
|
| Roi |
Y
|
| Onvif |
Y
|

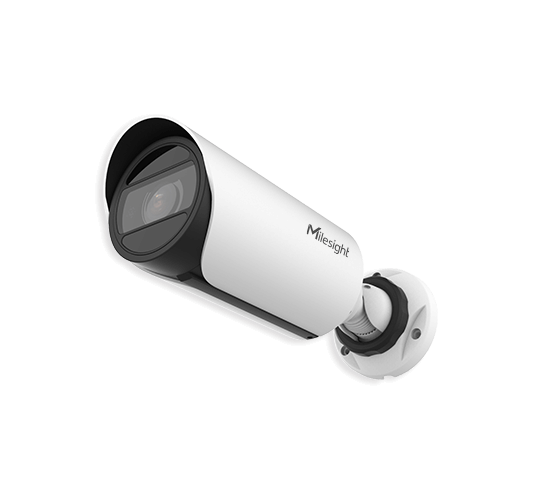

| Camera body |
Bullet
|
| Basic event detection |
Y
|
| Working temprature |
'-40℃~60℃
|
| Power Input |
PoE (802.3af) / DC 12V±10%
|
| Megapixels |
4K
|
| White balance |
Y
|
| IP Rating |
IP67
|
| Connection Type |
PoE
|
| Ip rating |
IP67
|
| Image sensor |
1/2.8″ Progressive Scan CMOS
|
| Network interface |
Y
|
| Network access control |
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.20x, QoS, IGMP, ICMP, SSL
|
| Management software |
SmartTools；CMS;M-sight pro APP
|
| Vandal Rating |
IK10
|
| Max resolution |
3840×2160
|
| Event action |
Y
|
| Digital zoom |
Y
|
| Daynight |
True
|
| Audio interface |
Y
|
| Audio input |
Y
|
| Audio compression |
G.711/AAC/G.722/G.726
|
| Alarm output |
Y
|
| Field of view |
H110°/D126°/V60°(2.8mm)H91°/D106°/V50°(4mm)H55°/D63°/V32°(6mm)
|
| Brand |
Milesight
|
| Alarm Output |
Y
|
| Mobile Compatible |
False
|
| Alarm Linkage |
False
|
| Explosion Proof |
False
|
| Removable IR-Cut Filter |
False
|
| Software Development Kit |
False
|
| Water and Dust Resistant |
False
|
