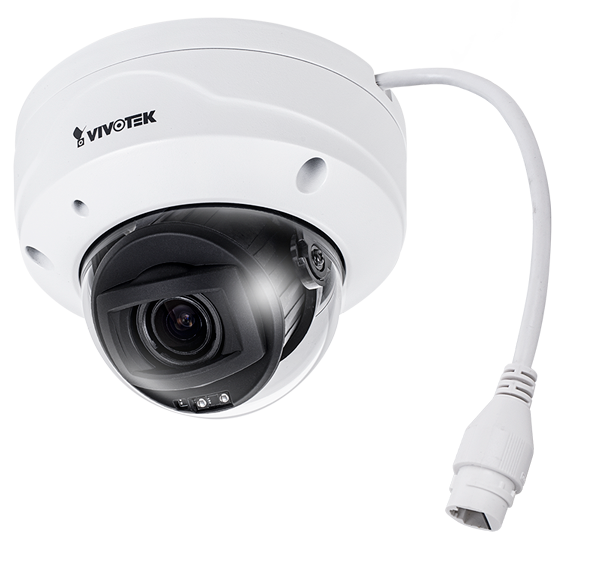

VIVOTEK C-Series Dome Camera 2MP

VIVOTEK C-Series Dome Camera 2MP
SKU VIV-FD9368-HTV

VIVOTEK C-Series Dome Camera – Outdoor Fixed Dome, 2M 30fps, H.265/H.264/MJPEG, f2.8~12mm remote focal lens, D/N, IR 30m, WDR Pro, PoE, MicroSD/SDHC/SDXC, Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F).

Key Features

  • H.265 Compression Technology
  • 30 fps @ 1920×1080 (WDR Pro on)
  • 2.8~12 mm, Remote Focus
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
  • Smart Stream III to Optimize Bandwidth Efficiency
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Trend Micro IoT Security
  • Weather-proof IP66-rated and Vandal-Proof IK10-rated Housing
  • Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • Built-in Microphone

Overview

VIVOTEK’s FD9368-HTV is a H.265 outdoor dome network camera equipped with a 2-Megapixel sensor, enabling resolution of 1920×1080 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9368-HTV is capable of capturing high-quality imagery in both high contrast and low light environments.

The FD9368-HTV deploys a remote focus lens for different user scenarios. IR illuminators are equipped with a 30-meter effective range for better night visibility. . Further, to provide reliable coverage in harsh outdoor environments, the FD9368-HTV is encased in IP66 and IK10 housing.

By employing VIVOTEK’s Smart Stream III technology and H.265 codec support, the FD9368-HTV is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.

* Depending on scenes

H.265 + Smart Stream III, Ultra-low Bandwidth

Trend Micro IoT Security for Cybersecurity

Amazon Kinesis Video Streams

Technical Specifications

System Information
  • Model: FD9368-HTV
  • CPU: Multimedia SoC (System-on-Chip)
  • Flash: 128MB
  • RAM: 256MB
Camera Features
  • Image Sensor: 1/2.9″ Progressive CMOS
  • Max. Resolution: 1920×1080 (2MP)
  • Lens Type: Motorized, Vari-focal, Remote Focus
  • Focal Length: f = 2.8 ~ 12 mm
  • Aperture: F1.4 ~ F2.8
  • Auto-iris: Fixed-iris
  • Field of View:
    • 32°~93° (Horizontal)
    • 18°~50° (Vertical)
    • 37°~110° (Diagonal)
  • Shutter Time: 1/5 sec. to 1/32,000 sec.
  • WDR Technology: WDR Pro
  • Day/Night: Yes
  • Removable IR-cut Filter: Yes
  • IR Illuminators: Built-in IR Illuminators up to 30 meters with Smart IR, IR LED*2
  • Minimum Illumination:
    • 0.055 lux @ F1.4 (Colour)
    • <0.005 lux @ F1.4 (B/W)
    • 0 Lux with IR illumination on
  • Pan Range: 353°
  • Tilt Range: 75°
  • Rotation Range: 350°
  • Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • On-board Storage: Slot Type:
    • MicroSD/SDHC/SDXC card slot
    • Seamless Recording
Video
  • Video Compression: H.265, H.264, MJPEG
  • Maximum Frame Rate: 30 fps @ 1920×1080
  • Maximum Streams: 3 simultaneous streams
  • S/N Ratio: 68 dB
  • Dynamic Range: 120 dB
  • Video Streaming: Adjustable resolution, quality and bitrate, Smart Stream III
  • Image Settings: Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, video rotation
Audio
  • Audio Capability: One-way Audio
  • Audio Compression: G.711, G.726
  • Audio Interface: Built-in microphone
  • Effective Range: 5 meters
Network
  • Users: Live viewing for up to 10 clients
  • Protocols: 802.1X, ARP, CIFS/SMB, CoS, liNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
  • Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45)
    *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
  • ONVIF: Supported, specification available at www.onvif.org
Solution Integration
  • Video Motion Detection: Five-window video motion detection
  • VADP Package: Trend Micro IoT Security, Stratocast
Alarm and Event
  • Alarm Triggers: Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, manual trigger, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
  • Alarm Events:
    • Event notification via email, HTTP, FTP, NAS server, SD card
    • File upload via email, HTTP, FTP, NAS server, SD card
General
  • Connectors: RJ-45 cable connector for 10/100Mpbs Network/PoE connection
  • LED Indicator: System power and status indicator
  • Power Input: IEEE 802.3af PoE Class 0
  • Power Consumption: Max. 12.95 W (IR on)
  • Max. 9 W (IR off)
  • Dimensions: ø 133.7 x 103.8 mm
  • Weight: 819 g
  • Casing: IP66, IK10
  • Safety Certifications: CE, FCC Class B, UL, LVD, VCCI, C-Tick
  • Operating Temperature:
    • Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
    • Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
  • Humidity: 90%
  • Warranty: 24 months
System Requirements
  • Operating System:
    • Microsoft Windows 8/7
    • Mac 10.12 (Chrome only)
  • Web Browser:
    • Chrome 58.0 or above
    • Internet Explorer 10/11
  • Other Players: VLC: 1.1.11 or above
Included Accessories
  • Others: Quick installation guide, alignment sticker, screw pack, cable gland
Brand: VIVOTEK
Camera Body: Dome

FD9368-HTV

SKU VIV-FD9368-HTV
