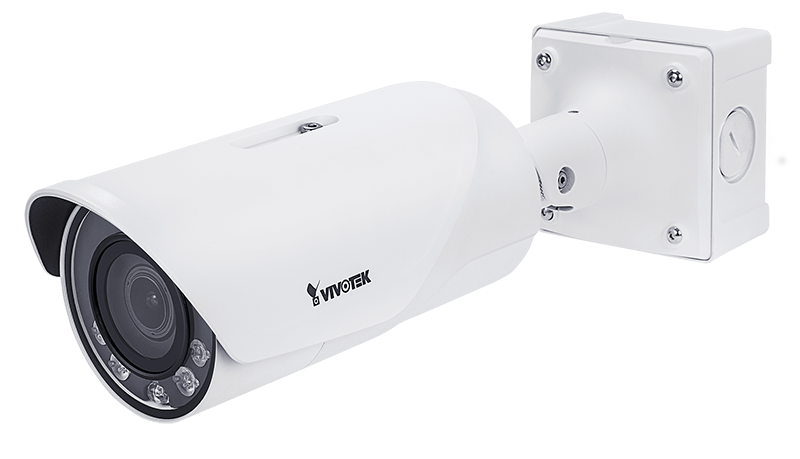

VIVOTEK Supreme Bullet Camera 8MP

VIVOTEK Supreme Bullet Camera 8MP
SKU VIV-IB9391-EHT

VIVOTEK Supreme Bullet Camera – Outdoor Bullet, 8M 30fps, H.265/H.264/MJPEG, f3.9 ~ 10mm Motorized Lens, P-iris, D /N, IR 50m, SNV, WDR PRO, 3DNR, PoE/DC12V/AC24V, I/O 1/1, Two- way Audio, MicroSD/SDHC/SDXC, IP66/IP67/IK10 (Metal Housing).

Key Features

  • 30 fps @ 3840×2160 (WDR Pro on), 120 fps @ 1920×1080 (WDR Pro off)
  • Smart Stream III to Optimize Bandwidth Efficiency
  • Built-in IR Illuminators, Effective up to 50 Meters
  • Smart IR II Technology to Avoid Overexposure
  • WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Smart Motion Detection to Reduce False Alarms
  • Weather-proof IP66/IP67, Vandal-proof IK10 and NEMA 4X-rated Housing
  • -50°C ~ 60°C Wide Temperature Range for Extreme Weather Conditions (IR Off)
  • Trend Micro IoT Security

Overview

The IB9391-EHT is the new flagship outdoor bullet network camera from VIVOTEK, equipped with a 4K ultra HD sensor capable of 3840×2160 resolution at 30 fps. With the latest in VIVOTEK WDR Pro technology, the IB9391-HTV is capable of capturing the highest quality images in high contrast environments.

The IB9391-EHT also supports standard 1920×1080 HD resolution at 120 frames per second, capable of catching very fast moving objects. Additionally, the IB9391-EHT employs VIVOTEK’s Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality. Protecting all these features is the IB9391-EHT’s IP67, IK10 and NEMA 4X certified housing, capable of operating in temperatures from -50°C to 60°C.

* Depending on scene.

Amazon Kinesis Video Streams

Trend Micro IoT Security for Cybersecurity

Technical Specifications

System Information
  • Model: IB9391-EHT
  • CPU: Multimedia SoC (System-on-Chip)
  • Flash: 128MB
  • RAM: 1GB
Camera Features
  • Image Sensor: 1/2″ Progressive CMOS
  • Max. Resolution: 3840×2160 (4K/8MP)
  • Lens Type: Motorized, Vari-focal, Remote Focus
  • Focal Length: f = 3.9 ~ 10 mm
  • Aperture: F1.5 ~ F2.7
  • Auto-iris: P-iris
  • Field of View:
    • 45° ~ 95° (Horizontal)
    • 25° ~ 52° (Vertical)
    • 52° ~ 111° (Diagonal)
  • Shutter Time: 1/5 sec. to 1/32,000 sec.
  • WDR Technology: WDR Pro
  • Day/Night: Yes
  • Removable IR-cut Filter: Yes
  • IR Illuminators: Built-in IR Illuminators up to 50 meters with Smart IR II
  • Minimum Illumination:
    • 0.02 Lux @ F1.5 (Color)
    • 0.01 Lux @ F1.5 (B/W)
    • 0 Lux with IR illumination on
  • Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • On-board Storage:
    • Slot type: MicroSD/SDHC/SDXC card slot
    • Seamless Recording
Video
  • Video Compression: H.265, H.264, MJPEG
  • Maximum Frame Rate:
    • 30 fps @ 3840×2160 (WDR Pro on)
    • 120 fps @ 1920×1080 (WDR Pro off)
  • Maximum Streams: 3 simultaneous streams
  • S/N Ratio: 60.5 dB
  • Dynamic Range: 120 dB
  • Video Streaming: Adjustable resolution, quality and bit rate control, Smart Stream III
  • Image Settings: Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, defog, 3DNR, video rotation, AE speed, DIS, HLC, deblur, metering
Audio
  • Audio Capability: Two-Way Audio (full duplex)
  • Audio Compression: G.711, G.726
  • Audio Interface:
    • External microphone input
    • External line output
Network
  • Users: Live viewing for up to 10 clients
  • Protocols: 802.1X, ARP, CIFS/SMB, CoS, liNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
  • Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45)
    *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
  • ONVIF: Supported, specification available at www.onvif.org
Solution Integration
  • Smart Motion Detection: Five-window video motion detection, people detection, time filter
  • Smart VCA: Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection
    *Please access https://license.vivotek.com/ to get the free trial license.
  • VADP Package: Deep Learning VCA (Smart Motion Detection, Smart VCA), Trend Micro IoT
Alarm and Event
  • Alarm Triggers: Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, shock detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
  • Alarm Events:
    • Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card
    • File upload via email, HTTP, FTP, NAS server, SD card
General
  • Connectors:
    • RJ-45 cable connector for 10/100Mpbs Network/PoE connection
    • Audio input
    • Audio output
    • DC 12V power input
    • AC 24V power input
    • Digital input*1
    • Digital output*1
  • LED Indicator: System power and status indicator
  • Power Input:
    • IEEE 802.3at Class4 PoE
    • DC 12V
    • AC 24V
    • Power redundancy
  • Power Consumption:
    • PoE : Max. 24.8 W
    • DC 12V: Max. 21 W
    • AC 24V: Max. 23.4 W
  • Dimensions:
    • 121 x 121 x 394 mm (w/ junction box)
    • 118 x 118 x 333 mm (w/o junction box)
  • Weight:
    • 2,235 g (w/ junction box)
    • 1,755 g (w/o junction box)
  • Casing: IP66, IP67, IK10, NEMA 4X
  • Safety Certifications: CE, FCC Class A, VCCI, C-tick, UL, BIS
  • Operating Temperature:
    • Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
    • Working Temperature (IR off): -50°C ~ 60°C (-58°F ~ 140°F)
    • Working Temperature (IR on): -50°C ~ 50°C (-58°F ~ 122°F)
  • Humidity: 90%
  • Warranty: 36 months
System Requirements
  • Operating System:
    • Microsoft Windows 8/7
    • Mac 10.12 (Chrome only)
  • Web Browser:
    • Chrome 58.0 or above
    • Internet Explorer 10/11
  • Other Players: VLC: 1.1.11 or above
Included Accessories
  • Others: Quick installation guide, warranty card, screw pack, alignment sticker, desiccant bag, waterproof accessory bag, junction box, sunshield.
Brand: VIVOTEK
Camera Body: Supreme Bullet

IB9391-EHT

SKU VIV-IB9391-EHT
